双色散单色仪

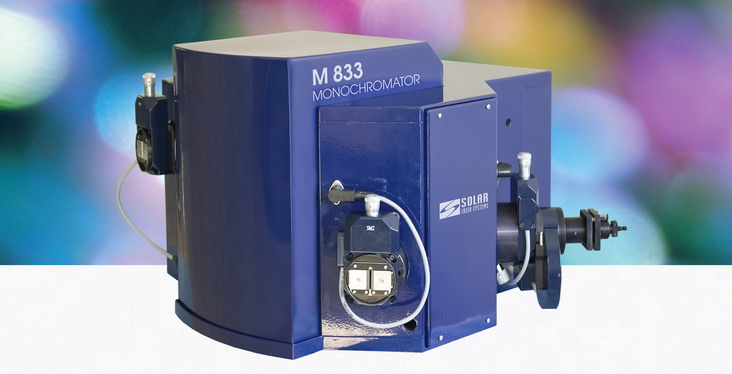

M833双色散单色仪、色谱仪

可用于拉曼光谱仪，发射、荧光光谱仪
UV-IR范围
多通道
图像模式
低杂散光
F 1:5.5长焦距

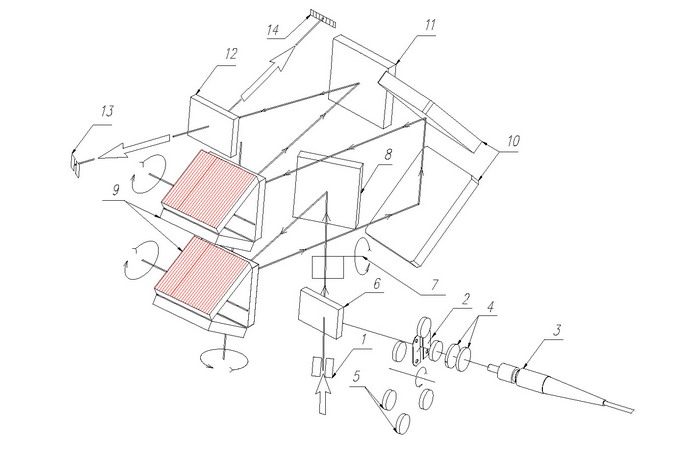

三光栅设计
双进光口和出光口
全电脑控制
提供DLL和VI供编程控制

查看Solar Laser System激光波长计
查看Solar Laser System双色散模式单色仪
查看Solar Laser System原子力显微镜共聚焦光谱仪

主要应用：
宽光谱拉曼和光致发光光谱的测量，特别可以应用于低频领域；
-半导体材料的内部应力测量。
-可以测量到极小的stokes和反stokes拉曼谱线，一般可以测量到80-100波数。特别应用于聚合物体系，半导体材料，陶瓷的结合效应，晶体结构等拉曼测量。
-需要深紫外激发的应用，如蛋白质，钻石，镀膜，半导体的光致发光谱。

产品资料下载

M833测量的拉曼光谱图：532nm激光器(TEM00, 10mW)，S7031-1006滨松探测器 (24um*24um pixel size, 24,6mm*1,4mm, ACD 16bit, one-stage Peltier cooling -10 Celsius, binning mode)

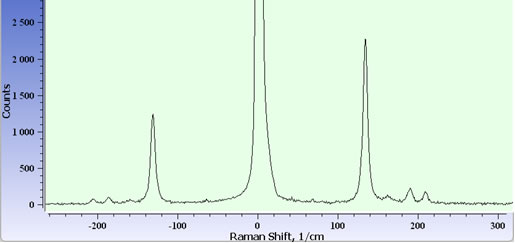

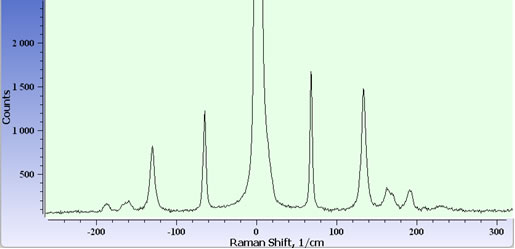

Fig. 1a, b. TeO2 Raman spectra depending on crystal orientation.
М833 is the unique instrument allowing to simultaneously observe both Stokes and Anti-Stokes components on the distance of 20 cm-1 from the exitation line.

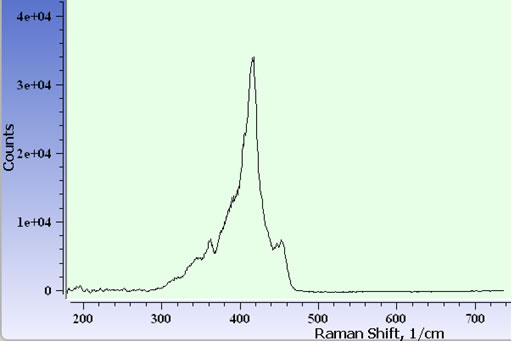

Fig. 2. Raman spectrum of a single nitron fiber demonstrates characteristic peaks in the range of 300...480 cm-1 with maximum at 405 cm-1.

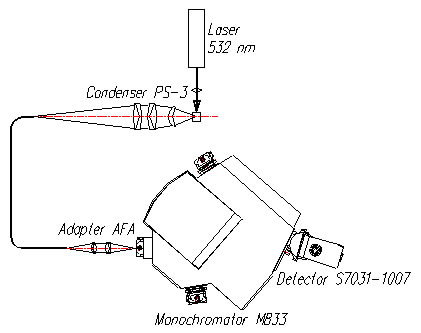

Fig.3. Breadboarding block-scheme of Raman spectra acquiring.
Raman spectra were collected at 90 deg to the exitation beam using a wide-aperture achromatic condenser PS-3, 600 um dia. optical fiber and the M833i spectrometer (1200 l\mm gratings and S7031-1006 Hamamatsu sensor). Aperture matching system AFA consisting of two objectives-achromats was used to match the optical fiber output (NA=0.2) and the M833i input (F# 5.5). The wide-aperture condenser PS-3 consists of a meniscus and two objectives-achromats and provides wide light collecting angle of 37 deg.
