Asahi-spectra 滤波片

Asahi-Spectra 滤波片

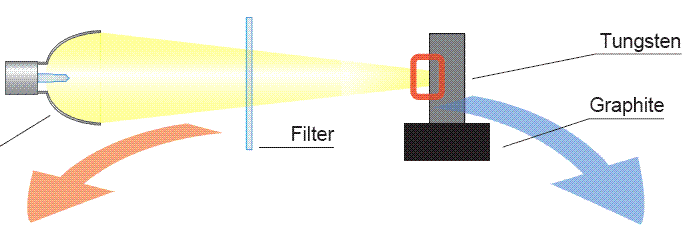

Asahi-Spectra生产各类滤波片，包括长通滤波片，短通滤波片，带通滤波片，中性滤波片，紫外滤波片，超冷滤波片(Super Cold Filter，隔热滤波片)，激光线滤波片，汞灯滤波片，同时也接受定制各类滤波片。可用于紫外滤波，天文滤波和光刻滤波等。

Semrock滤光片Semrock滤光片
Andover滤光片Andover滤光片
Thorlabs滤波片Thorlabs滤波片
DELTA滤波片delta滤波片

紫外滤波片

紫外透过滤波片

紫外透过滤波片

Target Band Transmission Band Rejection Band Item#
Φ25mm
UVA 315nm-400nm 200nm-700nm XUVA315
UVB 280nm-310nm 350nm-680nm XUVB280
UVA+UVB 260nm-400nm 430nm-680nm XUVC260



紫外短通滤波片

紫外短通滤波片

Cut-off Wavelength Transmission Band Rejection Band Item#
Φ25mm 50 x 50mm
250nm 232nm - 240nm 267nm - 295nm XUS0250 ZUS0250
265nm 235nm - 254nm 283nm - 312nm XUS0265 ZUS0265
300nm 240nm - 290nm 322nm - 352nm XUS0300 ZUS0300
325nm 240nm - 315nm 350nm - 380nm XUS0325 ZUS0325
350nm 240nm - 340nm 376nm - 407nm XUS0350 ZUS0350
385nm 240nm - 375nm 416nm - 448nm XUS0385 ZUS0385
400nm 250nm - 390nm 431nm - 465nm XUS0400 ZUS0400



紫外长通滤波片

紫外长通滤波片

Cut-off Wavelength Transmission Band Rejection Band Item#
Φ25mm 50 x 50mm
250nm 260nm - 800nm 210nm - 233nm XUL0250 ZUL0250
275nm 285nm - 800nm 232nm - 257nm XUL0275 ZUL0275
300nm 310nm - 800nm 253nm - 280nm XUL0300 ZUL0300
325nm 340nm - 800nm 273nm - 304nm XUL0325 ZUL0325
350nm 360nm - 800nm 288nm - 331nm XUL0350 ZUL0350
385nm 400nm - 800nm 316nm - 363nm XUL0385 ZUL0385
400nm 410nm - 800nm 200nm - 383nm XUL0400 ZUL0400



紫外带通滤波片

紫外带通滤波片紫外带通滤波片

Center Wavelength (CWL) FWHM Peak Transmittance (min.) Rejection Band Item#
Φ25mm 50 x 50mm
254nm 10nm 20% 200nm - 1,200nm XBPA254 ZBPA254
260nm 10nm 20% 200nm - 1,200nm XBPA260 ZBPA260
270nm 10nm 20% 200nm - 1,200nm XBPA270 ZBPA270
280nm 10nm 20% 200nm - 1,200nm XBPA280 ZBPA280
290nm 10nm 20% 200nm - 1,200nm XBPA290 ZBPA290
300nm 10nm 30% 200nm - 1,200nm XBPA300 ZBPA300
310nm 10nm 35% 200nm - 1,200nm XBPA310 ZBPA310
320nm 10nm 45% 200nm - 1,200nm XBPA320 ZBPA320
330nm 10nm 45% 200nm - 1,200nm XBPA330 ZBPA330
340nm 10nm 45% 200nm - 1,200nm XBPA340 ZBPA340
350nm 10nm 45% 200nm - 1,200nm XBPA350 ZBPA350
360nm 10nm 40% 200nm - 1,200nm XBPA360 ZBPA360
365nm 10nm 40% 200nm - 1,200nm XBPA365 ZBPA365
370nm 10nm 40% 200nm - 1,200nm XBPA370 ZBPA370
380nm 10nm 45% 200nm - 1,200nm XBPA380 ZBPA380
390nm 10nm 45% 200nm - 1,200nm XBPA390 ZBPA390
400nm 10nm 45% 200nm - 1,200nm XBPA400 ZBPA400



紫外带通滤波片--高透过率

Center Wavelength (CWL) FWHM Peak Transmittance (min.) Rejection Band Item#
Φ25mm
254nm 10nm 60% 200nm - 450nm XHQA254
260nm 10nm 60% 200nm - 450nm XHQA260
270nm 10nm 60% 200nm - 450nm XHQA270
280nm 10nm 60% 200nm - 450nm XHQA280
290nm 10nm 60% 200nm - 450nm XHQA290
300nm 10nm 65% 200nm - 450nm XHQA300
310nm 10nm 65% 200nm - 450nm XHQA310
313nm 10nm 65% 200nm - 450nm XHQA313
320nm 10nm 65% 200nm - 520nm XHQA320
330nm 10nm 65% 200nm - 520nm XHQA330
340nm 10nm 65% 200nm - 520nm XHQA340
350nm 10nm 65% 200nm - 520nm XHQA350
360nm 10nm 70% 200nm - 520nm XHQA360
365nm 10nm 70% 200nm - 520nm XHQA365
370nm 10nm 70% 200nm - 520nm XHQA370
380nm 10nm 70% 200nm - 520nm XHQA380
390nm 10nm 70% 200nm - 520nm XHQA390



紫外带通滤波片--宽透过范围

Description Center Wavelength (CWL) Rejection Band Item#
25mm Dia 50 x 50mm
UV Broad Bandpass Filter 340nm 340nm 200-2000nm XRR0340 ZRR0340



短通滤波片

Asahi-spectra短通滤波片

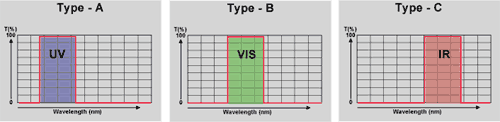

Type Description Cut/Off (nm)

Thickness (mm)

 Item#
25mm Dia. 50x50mm
A Shortpass Filter/UV 250nm 250 1 XUS0250 ZUS0250
A Shortpass Filter/UV 265nm 265 1 XUS0265 ZUS0265
A Shortpass Filter/UV 300nm 300 1 XUS0300 ZUS0300
A Shortpass Filter/UV 325nm 325 1 XUS0325 ZUS0325
A Shortpass Filter/UV 350nm 350 1 XUS0350 ZUS0350
A Shortpass Filter/UV 385nm 385 1 XUS0385 ZUS0385
A Shortpass Filter/UV 400nm 400 1 XUS0400 ZUS0400
A Shortpass Filter/UV 425nm 425 1 XUS0425 ZUS0425
A Shortpass Filter/UV 450nm 450 1 XUS0450 ZUS0450
A Shortpass Filter/UV 460nm 460 1 XUS0460 ZUS0460
A Shortpass Filter/UV 500nm 500 1 XUS0500 ZUS0500
B Shortpass Filter/VIS 430nm 430 1.5 XVS0430 ZVS0430
B Shortpass Filter/VIS 450nm 450 1.5 XVS0450 ZVS0450
B Shortpass Filter/VIS 470nm 470 1.5 XVS0470 ZVS0470
B Shortpass Filter/VIS 490nm 490 1.5 XVS0490 ZVS0490
B Shortpass Filter/VIS 510nm 510 1.5 XVS0510 ZVS0510
B Shortpass Filter/VIS 530nm 530 1.5 XVS0530 ZVS0530
B Shortpass Filter/VIS 550nm 550 1.5 XVS0550 ZVS0550
B Shortpass Filter/VIS 570nm 570 1.5 XVS0570 ZVS0570
B Shortpass Filter/VIS 590nm 590 1.5 XVS0590 ZVS0590
B Shortpass Filter/VIS 610nm 610 1.5 XVS0610 ZVS0610
B Shortpass Filter/VIS 630nm 630 1.5 XVS0630 ZVS0630
B Shortpass Filter/VIS 650nm 650 1.5 XVS0650 ZVS0650
B Shortpass Filter/VIS 670nm 670 1.5 XVS0670 ZVS0670
B Shortpass Filter/VIS 690nm 690 1.5 XVS0690 ZVS0690
B Shortpass Filter/VIS 710nm 710 1.5 XVS0710 ZVS0710
B Shortpass Filter/VIS 750nm 750 1 XVS0750 ZVS0750
C Shortpass Filter/IR 780nm 780 1 XIS0780 ZIS0780
C Shortpass Filter/IR 810nm 810 1 XIS0810 ZIS0810
C Shortpass Filter/IR 840nm 840 1 XIS0840 ZIS0840
C Shortpass Filter/IR 870nm 870 1 XIS0870 ZIS0870
C Shortpass Filter/IR 900nm 900 1 XIS0900 ZIS0900
C Shortpass Filter/IR 930nm 930 1 XIS0930 ZIS0930
C Shortpass Filter/IR 960nm 960 1 XIS0960 ZIS0960
C Shortpass Filter/IR 990nm 990 1 XIS0990 ZIS0990



下载短通滤波片产品手册短通滤波片



长通滤波片

Asahi-spectra长通滤波片

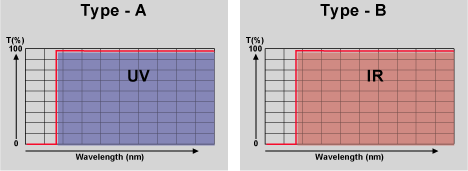

Type Description Cut/On (nm) Thickness (mm) Item#
25mm Dia. 50x50mm
A Longpass Filter/UV 250nm 250 1 XUL0250 ZUL0250
A Longpass Filter/UV 275nm 275 1 XUL0275 ZUL0275
A Longpass Filter/UV 300nm 300 1 XUL0300 ZUL0300
A Longpass Filter/UV 325nm 325 1 XUL0325 ZUL0325
A Longpass Filter/UV 350nm 350 1 XUL0350 ZUL0350
A Longpass Filter/UV 385nm 385 1 XUL0385 ZUL0385
A Longpass Filter/UV 400nm 400 1 XUL0400 ZUL0400
A Longpass Filter/UV 422nm 422 1 XUL0422 ZUL0422
Longpass Filter/VIS 430nm 430 3 XVL0430 ZVL0430
Longpass Filter/VIS 450nm 450 3 XVL0450 ZVL0450
Longpass Filter/VIS 470nm 470 3 XVL0470 ZVL0470
Longpass Filter/VIS 490nm 490 3 XVL0490 ZVL0490
Longpass Filter/VIS 510nm 510 3 XVL0510 ZVL0510
Longpass Filter/VIS 530nm 530 3 XVL0530 ZVL0530
Longpass Filter/VIS 550nm 550 3 XVL0550 ZVL0550
Longpass Filter/VIS 570nm 570 3 XVL0570 ZVL0570
Longpass Filter/VIS 590nm 590 3 XVL0590 ZVL0590
Longpass Filter/VIS 610nm 610 3 XVL0610 ZVL0610
Longpass Filter/VIS 630nm 630 3 XVL0630 ZVL0630
Longpass Filter/VIS 650nm 650 3 XVL0650 ZVL0650
Longpass Filter/VIS 670nm 670 3 XVL0670 ZVL0670
Longpass Filter/VIS 690nm 690 3 XVL0690 ZVL0690
Longpass Filter/VIS 710nm 710 3 XVL0710 ZVL0710
Longpass Filter/VIS 730nm 730 3 XVL0730 ZVL0730
B Longpass Filter/IR 750nm 750 3 XIL0750 ZIL0750
B Longpass Filter/IR 780nm 780 3 XIL0780 ZIL0780
B Longpass Filter/IR 810nm 810 3 XIL0810 ZIL0810
B Longpass Filter/IR 840nm 840 3 XIL0840 ZIL0840
B Longpass Filter/IR 870nm 870 3 XIL0870 ZIL0870
B Longpass Filter/IR 900nm 900 4 XIL0900 ZIL0900
B Longpass Filter/IR 930nm 930 4 XIL0930 ZIL0930
B Longpass Filter/IR 960nm 960 4 XIL0960 ZIL0960
B Longpass Filter/IR 990nm 990 4 XIL0990 ZIL0990

下载长通滤波片产品手册长通滤波片



带通滤波片

带通滤波片

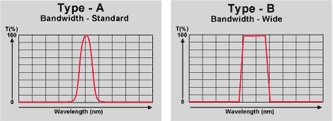

Type Description CWL (nm) FWHM (nm) Item#
25mm Dia. 50mm Dia. 50x50mm
A Bandpass Filter/254nm 254 10 XBPA254 ZBPA254
A High Transmission UV Bandpass Filter/254nm 254 10 XHQA254
A Bandpass Filter/260nm 260 10 XBPA260 ZBPA260
A High Transmission UV Bandpass Filter/260nm 260 10 XHQA260
A Bandpass Filter/270nm 270 10 XBPA270 ZBPA270
A High Transmission UV Bandpass Filter/270nm 270 10 XHQA270
A Bandpass Filter/280nm 280 10 XBPA280 ZBPA280
A High Transmission UV Bandpass Filter/280nm 280 10 XHQA280
A Bandpass Filter/290nm 290 10 XBPA290 ZBPA290
A High Transmission UV Bandpass Filter/290nm 290 10 XHQA290
A Bandpass Filter/300nm 300 10 XBPA300 ZBPA300
A High Transmission UV Bandpass Filter/300nm 300 10 XHQA300
A Bandpass Filter/310nm 310 10 XBPA310 ZBPA310
A High Transmission UV Bandpass Filter/310nm 310 10 XHQA310
A High Transmission UV Bandpass Filter/313nm 313 10 XHQA313
A Bandpass Filter/320nm 320 10 XBPA320 ZBPA320
A High Transmission UV Bandpass Filter/320nm 320 10 XHQA320
A Bandpass Filter/330nm 330 10 XBPA330 ZBPA330
A High Transmission UV Bandpass Filter/330nm 330 10 XHQA330
A Bandpass Filter/340nm 340 10 XBPA340 ZBPA340
A High Transmission UV Bandpass Filter/340nm 340 10 XHQA340
Red Rejection UV Filter 340nm 340 XRR0340 ZRR0340
A Bandpass Filter/350nm 350 10 XBPA350 ZBPA350
A High Transmission UV Bandpass Filter/350nm 350 10 XHQA350
A Bandpass Filter/360nm 360 10 XBPA360 ZBPA360
A High Transmission UV Bandpass Filter/360nm 360 10 XHQA360
A Bandpass Filter/365nm 365 10 XBPA365 ZBPA365
A High Transmission UV Bandpass Filter/365nm 365 10 XHQA365
A Bandpass Filter/370nm 370 10 XBPA370 ZBPA370
A High Transmission UV Bandpass Filter/370nm 370 10 XHQA370
A Bandpass Filter/380nm 380 10 XBPA380 YBPA380 ZBPA380
A High Transmission UV Bandpass Filter/380nm 380 10 XHQA380
A Bandpass Filter/390nm 390 10 XBPA390 YBPA390 ZBPA390
A High Transmission UV Bandpass Filter/390nm 390 10 XHQA390
A Bandpass Filter/400nm 400 10 XBPA400 YBPA400 ZBPA400
A Bandpass Filter/405nm 405 10 XBPA405 YBPA405 ZBPA405
A Bandpass Filter/410nm 410 10 XBPA410 YBPA410 ZBPA410
A Bandpass Filter/420nm 420 10 XBPA420 YBPA420 ZBPA420
B Bandpass Filter/0420-020nm 420 20 ZBPB001
A Bandpass Filter/430nm 430 10 XBPA430 YBPA430 ZBPA430
B Bandpass Filter/0430-040nm 430 40 ZBPB002
A Bandpass Filter/436nm 436 10 XBPA436 YBPA436 ZBPA436
A Bandpass Filter/440nm 440 10 XBPA440 YBPA440 ZBPA440
B Bandpass Filter/0440-020nm 440 20 ZBPB003
B Bandpass Filter/0440-060nm 440 60 ZBPB004
A Bandpass Filter/450nm 450 10 XBPA450 YBPA450 ZBPA450
B Bandpass Filter/0450-040nm 450 40 ZBPB005
B Bandpass Filter/0450-080nm 450 80 ZBPB006
A Bandpass Filter/460nm 460 10 XBPA460 YBPA460 ZBPA460
B Bandpass Filter/0460-020nm 460 20 ZBPB007
B Bandpass Filter/0460-060nm 460 60 ZBPB008
B Bandpass Filter/0460-100nm 460 100 ZBPB009
A Bandpass Filter/470nm 470 10 XBPA470 YBPA470 ZBPA470
B Bandpass Filter/0470-040nm 470 40 ZBPB010
B Bandpass Filter/0470-080nm 470 80 ZBPB011
B Bandpass Filter/0470-120nm 470 120 ZBPB012
A Bandpass Filter/480nm 480 10 XBPA480 YBPA480 ZBPA480
B Bandpass Filter/0480-020nm 480 20 ZBPB013
B Bandpass Filter/0480-060nm 480 60 ZBPB014
B Bandpass Filter/0480-100nm 480 100 ZBPB015
B Bandpass Filter/0480-140nm 480 140 ZBPB016
A Bandpass Filter/490nm 490 10 XBPA490 YBPA490 ZBPA490
B Bandpass Filter/0490-040nm 490 40 ZBPB017
B Bandpass Filter/0490-080nm 490 80 ZBPB018
B Bandpass Filter/0490-120nm 490 120 ZBPB019
B Bandpass Filter/0490-160nm 490 160 ZBPB020
A Bandpass Filter/500nm 500 10 XBPA500 YBPA500 ZBPA500
B Bandpass Filter/0500-020nm 500 20 ZBPB021
B Bandpass Filter/0500-060nm 500 60 ZBPB022
B Bandpass Filter/0500-100nm 500 100 ZBPB023
B Bandpass Filter/0500-140nm 500 140 ZBPB024
B Bandpass Filter/0500-180nm 500 180 ZBPB025
A Bandpass Filter/510nm 510 10 XBPA510 YBPA510 ZBPA510
B Bandpass Filter/0510-040nm 510 40 ZBPB026
B Bandpass Filter/0510-080nm 510 80 ZBPB027
B Bandpass Filter/0510-120nm 510 120 ZBPB028
B Bandpass Filter/0510-160nm 510 160 ZBPB029
B Bandpass Filter/0510-200nm 510 200 ZBPB030
A Bandpass Filter/520nm 520 10 XBPA520 YBPA520 ZBPA520
B Bandpass Filter/0520-020nm 520 20 ZBPB031
B Bandpass Filter/0520-060nm 520 60 ZBPB032
B Bandpass Filter/0520-100nm 520 100 ZBPB033
B Bandpass Filter/0520-140nm 520 140 ZBPB034
B Bandpass Filter/0520-180nm 520 180 ZBPB035
B Bandpass Filter/0520-220nm 520 220 ZBPB036
A Bandpass Filter/530nm 530 10 XBPA530 YBPA530 ZBPA530
B Bandpass Filter/0530-040nm 530 40 ZBPB037
B Bandpass Filter/0530-080nm 530 80 ZBPB038
B Bandpass Filter/0530-120nm 530 120 ZBPB039
B Bandpass Filter/0530-160nm 530 160 ZBPB040
B Bandpass Filter/0530-200nm 530 200 ZBPB041
B Bandpass Filter/0530-240nm 530 240 ZBPB042
A Bandpass Filter/540nm 540 10 XBPA540 YBPA540 ZBPA540
B Bandpass Filter/0540-020nm 540 20 ZBPB043
B Bandpass Filter/0540-060nm 540 60 ZBPB044
B Bandpass Filter/0540-100nm 540 100 ZBPB045
B Bandpass Filter/0540-140nm 540 140 ZBPB046
B Bandpass Filter/0540-180nm 540 180 ZBPB047
B Bandpass Filter/0540-220nm 540 220 ZBPB048
B Bandpass Filter/0540-260nm 540 260 ZBPB049
A Bandpass Filter/550nm 550 10 XBPA550 YBPA550 ZBPA550
B Bandpass Filter/0550-040nm 550 40 ZBPB050
B Bandpass Filter/0550-080nm 550 80 ZBPB051
B Bandpass Filter/0550-120nm 550 120 ZBPB052
B Bandpass Filter/0550-160nm 550 160 ZBPB053
B Bandpass Filter/0550-200nm 550 200 ZBPB054
B Bandpass Filter/0550-240nm 550 240 ZBPB055
B Bandpass Filter/0550-280nm 550 280 ZBPB056
A Bandpass Filter/560nm 560 10 XBPA560 YBPA560 ZBPA560
B Bandpass Filter/0560-020nm 560 20 ZBPB057
B Bandpass Filter/0560-060nm 560 60 ZBPB058
B Bandpass Filter/0560-100nm 560 100 ZBPB059
B Bandpass Filter/0560-140nm 560 140 ZBPB060
B Bandpass Filter/0560-180nm 560 180 ZBPB061
B Bandpass Filter/0560-220nm 560 220 ZBPB062
B Bandpass Filter/0560-260nm 560 260 ZBPB063
B Bandpass Filter/0560-300nm 560 300 ZBPB064
A Bandpass Filter/570nm 570 10 XBPA570 YBPA570 ZBPA570
B Bandpass Filter/0570-040nm 570 40 ZBPB065
B Bandpass Filter/0570-080nm 570 80 ZBPB066
B Bandpass Filter/0570-120nm 570 120 ZBPB067
B Bandpass Filter/0570-160nm 570 160 ZBPB068
B Bandpass Filter/0570-200nm 570 200 ZBPB069
B Bandpass Filter/0570-240nm 570 240 ZBPB070
B Bandpass Filter/0570-280nm 570 280 ZBPB071
B Bandpass Filter/0570-320nm 570 320 ZBPB072
A Bandpass Filter/580nm 580 10 XBPA580 YBPA580 ZBPA580
B Bandpass Filter/0580-020nm 580 20 ZBPB073
B Bandpass Filter/0580-060nm 580 60 ZBPB074
B Bandpass Filter/0580-100nm 580 100 ZBPB075
B Bandpass Filter/0580-140nm 580 140 ZBPB076
B Bandpass Filter/0580-180nm 580 180 ZBPB077
B Bandpass Filter/0580-220nm 580 220 ZBPB078
B Bandpass Filter/0580-260nm 580 260 ZBPB079
B Bandpass Filter/0580-300nm 580 300 ZBPB080
B Bandpass Filter/0580-340nm 580 340 ZBPB081
A Bandpass Filter/590nm 590 10 XBPA590 YBPA590 ZBPA590
B Bandpass Filter/0590-040nm 590 40 ZBPB082
B Bandpass Filter/0590-080nm 590 80 ZBPB083
B Bandpass Filter/0590-120nm 590 120 ZBPB084
B Bandpass Filter/0590-160nm 590 160 ZBPB085
B Bandpass Filter/0590-200nm 590 200 ZBPB086
B Bandpass Filter/0590-240nm 590 240 ZBPB087
B Bandpass Filter/0590-280nm 590 280 ZBPB088
B Bandpass Filter/0590-320nm 590 320 ZBPB089
A Bandpass Filter/600nm 600 12 XBPA600 YBPA600 ZBPA600
B Bandpass Filter/0600-020nm 600 20 ZBPB090
B Bandpass Filter/0600-060nm 600 60 ZBPB091
B Bandpass Filter/0600-100nm 600 100 ZBPB092
B Bandpass Filter/0600-140nm 600 140 ZBPB093
B Bandpass Filter/0600-180nm 600 180 ZBPB094
B Bandpass Filter/0600-220nm 600 220 ZBPB095
B Bandpass Filter/0600-260nm 600 260 ZBPB096
B Bandpass Filter/0600-300nm 600 300 ZBPB097
A Bandpass Filter/610nm 610 12 XBPA610 YBPA610 ZBPA610
B Bandpass Filter/0610-040nm 610 40 ZBPB098
B Bandpass Filter/0610-080nm 610 80 ZBPB099
B Bandpass Filter/0610-120nm 610 120 ZBPB100
B Bandpass Filter/0610-160nm 610 160 ZBPB101
B Bandpass Filter/0610-200nm 610 200 ZBPB102
B Bandpass Filter/0610-240nm 610 240 ZBPB103
B Bandpass Filter/0610-280nm 610 280 ZBPB104
A Bandpass Filter/620nm 620 12 XBPA620 YBPA620 ZBPA620
B Bandpass Filter/0620-020nm 620 20 ZBPB105
B Bandpass Filter/0620-060nm 620 60 ZBPB106
B Bandpass Filter/0620-100nm 620 100 ZBPB107
B Bandpass Filter/0620-140nm 620 140 ZBPB108
B Bandpass Filter/0620-180nm 620 180 ZBPB109
B Bandpass Filter/0620-220nm 620 220 ZBPB110
B Bandpass Filter/0620-260nm 620 260 ZBPB111
A Bandpass Filter/630nm 630 12 XBPA630 YBPA630 ZBPA630
B Bandpass Filter/0630-040nm 630 40 ZBPB112
B Bandpass Filter/0630-080nm 630 80 ZBPB113
B Bandpass Filter/0630-120nm 630 120 ZBPB114
B Bandpass Filter/0630-160nm 630 160 ZBPB115
B Bandpass Filter/0630-200nm 630 200 ZBPB116
B Bandpass Filter/0630-240nm 630 240 ZBPB117
A Bandpass Filter/640nm 640 12 XBPA640 YBPA640 ZBPA640
B Bandpass Filter/0640-020nm 640 20 ZBPB118
B Bandpass Filter/0640-060nm 640 60 ZBPB119
B Bandpass Filter/0640-100nm 640 100 ZBPB120
B Bandpass Filter/0640-140nm 640 140 ZBPB121
B Bandpass Filter/0640-180nm 640 180 ZBPB122
B Bandpass Filter/0640-220nm 640 220 ZBPB123
A Bandpass Filter/650nm 650 12 XBPA650 YBPA650 ZBPA650
B Bandpass Filter/0650-040nm 650 40 ZBPB124
B Bandpass Filter/0650-080nm 650 80 ZBPB125
B Bandpass Filter/0650-120nm 650 120 ZBPB126
B Bandpass Filter/0650-160nm 650 160 ZBPB127
B Bandpass Filter/0650-200nm 650 200 ZBPB128
A Bandpass Filter/660nm 660 12 XBPA660 YBPA660 ZBPA660
B Bandpass Filter/0660-020nm 660 20 ZBPB129
B Bandpass Filter/0660-060nm 660 60 ZBPB130
B Bandpass Filter/0660-100nm 660 100 ZBPB131
B Bandpass Filter/0660-140nm 660 140 ZBPB132
B Bandpass Filter/0660-180nm 660 180 ZBPB133
A Bandpass Filter/670nm 670 12 XBPA670 YBPA670 ZBPA670
B Bandpass Filter/0670-040nm 670 40 ZBPB134
B Bandpass Filter/0670-080nm 670 80 ZBPB135
B Bandpass Filter/0670-120nm 670 120 ZBPB136
B Bandpass Filter/0670-160nm 670 160 ZBPB137
A Bandpass Filter/680nm 680 12 XBPA680 YBPA680 ZBPA680
B Bandpass Filter/0680-020nm 680 20 ZBPB138
B Bandpass Filter/0680-060nm 680 60 ZBPB139
B Bandpass Filter/0680-100nm 680 100 ZBPB140
B Bandpass Filter/0680-140nm 680 140 ZBPB141
A Bandpass Filter/690nm 690 12 XBPA690 YBPA690 ZBPA690
B Bandpass Filter/0690-040nm 690 40 ZBPB142
B Bandpass Filter/0690-080nm 690 80 ZBPB143
B Bandpass Filter/0690-120nm 690 120 ZBPB144
A Bandpass Filter/700nm 700 12 XBPA700 YBPA700 ZBPA700
B Bandpass Filter/0700-020nm 700 20 ZBPB145
B Bandpass Filter/0700-060nm 700 60 ZBPB146
B Bandpass Filter/0700-100nm 700 100 ZBPB147
A Bandpass Filter/710nm 710 12 XBPA710 YBPA710 ZBPA710
B Bandpass Filter/0710-040nm 710 40 ZBPB148
B Bandpass Filter/0710-080nm 710 80 ZBPB149
A Bandpass Filter/720nm 720 12 XBPA720 YBPA720 ZBPA720
B Bandpass Filter/0720-020nm 720 20 ZBPB150
B Bandpass Filter/0720-060nm 720 60 ZBPB151
A Bandpass Filter/730nm 730 12 XBPA730 YBPA730 ZBPA730
B Bandpass Filter/0730-040nm 730 40 ZBPB152
A Bandpass Filter/740nm 740 12 XBPA740 YBPA740 ZBPA740
B Bandpass Filter/0740-020nm 740 20 ZBPB153
A Bandpass Filter/750nm 750 12 XBPA750 YBPA750 ZBPA750
A Bandpass Filter/760nm 760 12 XBPA760 YBPA760 ZBPA760
A Bandpass Filter/770nm 770 12 XBPA770 YBPA770 ZBPA770
A Bandpass Filter/780nm 780 12 XBPA780 YBPA780 ZBPA780
A Bandpass Filter/790nm 790 12 XBPA790 YBPA790 ZBPA790
A Bandpass Filter/800nm 800 12 XBPA800 YBPA800 ZBPA800
A Bandpass Filter/810nm 810 12 XBPA810 YBPA810 ZBPA810
A Bandpass Filter/820nm 820 12 XBPA820 YBPA820 ZBPA820
A Bandpass Filter/830nm 830 12 XBPA830 YBPA830 ZBPA830
A Bandpass Filter/840nm 840 12 XBPA840 YBPA840 ZBPA840
A Bandpass Filter/850nm 850 12 XBPA850 YBPA850 ZBPA850
A Bandpass Filter/860nm 860 12 XBPA860 YBPA860 ZBPA860
A Bandpass Filter/870nm 870 12 XBPA870 YBPA870 ZBPA870
A Bandpass Filter/880nm 880 12 XBPA880 YBPA880 ZBPA880
A Bandpass Filter/890nm 890 12 XBPA890 YBPA890 ZBPA890
A Bandpass Filter/900nm 900 12 XBPA900 YBPA900 ZBPA900

下载带通滤波片产品手册带通滤波片

中性密度滤波片

中性密度滤波片

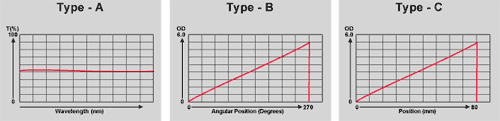

Type Description Transmission(%) Item#
25mm Dia. 50x50mm
A Neutral Density Filter/1% 1 XND0001 ZND0001
A Neutral Density Filter/3% 3 XND0003 ZND0003
A Neutral Density Filter/6% 6 XND0006 ZND0006
A Neutral Density Filter/12% 12 XND0012 ZND0012
A Neutral Density Filter/25% 25 XND0025 ZND0025
A Neutral Density Filter/50% 50 XND0050 ZND0050
B Circular Variable ND/OD0.04-3 0.1- 92 XCND3 YCND3

下载中性密度滤波片产品手册中性密度滤波片



超冷滤波片(Super Cold Filter)

超冷滤波片Super Cold Filter



Description Cut/Off(nm) Thickness(mm) Item#
50mm Dia. 50x50mm
Super Cold Filter 750nm 750 5 YSC0750 ZSC0750
Super Cold Filter 1100nm 1100 5 YSC1100 ZSC1100

下载Super Cold Filter产品手册Super Cold Filter

其他滤波片

下载汞灯滤波片产品手册汞灯滤波片

下载其他滤波片(Notch Filter,线性可变中性滤波片)产品手册Notch Filter,线性可变中性滤波片


玻色智能科技有限公司光谱仪专家
上海玻色智能科技有限公司
上海: (021)3353-0926, 3353-0928   北京: (010)8217-0506
广州: 139-0221-4841   武汉: 139-1733-4172
全国销售服务热线：4006-171751   Email: info@bosontech.com.cn
www.BosonTech.com.cn    2008-2022 All Rights Reserved!
