InnPho红外隔离器,红外偏振片,红外镜头,红外准直镜



InnPho红外隔离器,红外偏振片,红外镜头,红外准直镜

InnPho红外隔离器,红外偏振片,红外镜头,红外准直镜

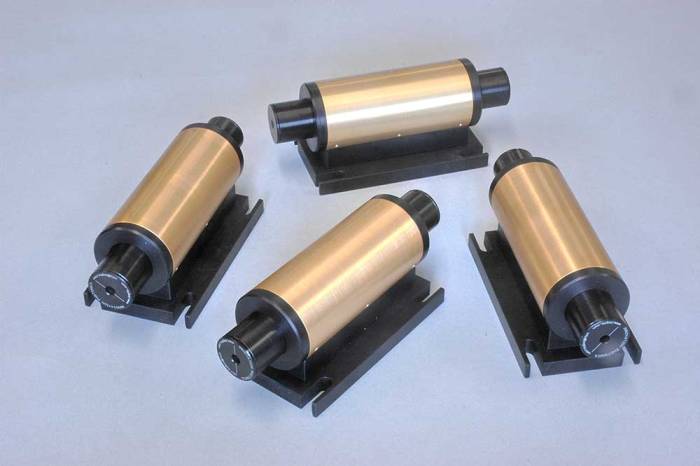

红外光隔离器

红外光隔离器

波长范围 4-14um,4-4.5mm狭缝

Catalog
Number
Aperture Transmittance Isolation Total
Length
Power
Rating
FIO-5-λ 4.5 mm 75-86% >> 1000:1 ~ 6″ inquire
Catalog
Number
Aperture Transmittance Isolation Total
Length
Power
Rating
FIO-4-4.5 4.0 mm 75-86% > 10,000:1 ~ 2″ Discuss

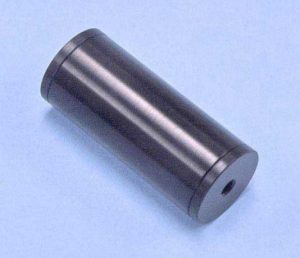

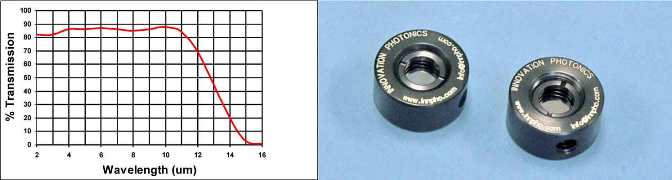

宽波段红外偏振片,2-12um

宽波段红外偏振片

宽波段红外偏振片

Catalog Number Aperture Transmittance of P-Ray Power Rating Extinction of Crossed Pair
PGC-4
PGC-5
4 mm
5 mm
≥98%
≥98%
100 MW/cm2
100 MW/cm2
2×105
2×105

PGC-4: 15 mm Diameter x 36 mm long

PGC-5: 1-inch long x 2.2 inches long



平顶扩束器

平顶扩束器

Spectral Range: 350 nm to 2 μm
Cross section uniformity: ±5-10% (neglecting speckle)
Laser damage threshold: 20 J/cm2, 1054 nm, 1 ns pulse

Part
Number
Description
ELG-10-λ Flat-Top Beam Expander, 10 mm dia collimated output
ELG-20-λ Flat-Top Beam Expander, 20 mm dia collimated output
ELG-45-λ Flat-Top Beam Expander, 45 mm dia collimated output
GCE-9 Flat-Top Converter element, mounted

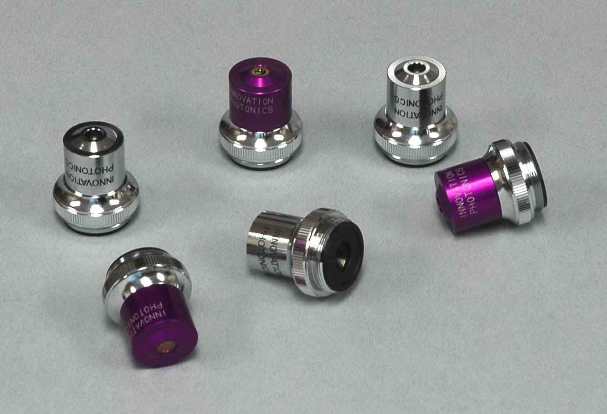

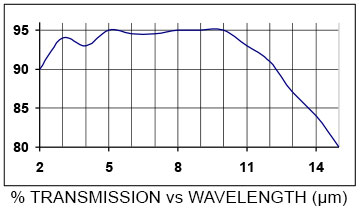

光纤准直镜 红外镜头

光纤准直镜 红外镜头

Catalog
Number
Focal Length Working Distance Numerical
Aperture
Maximum Beam
Dia
Magnification
LFO-2-4-λ 4.0 mm 3.6 mm 0.19 1.5 mm 40X
LFO-2-6-λ 6.0 mm 5.2 mm 0.17 2.0 mm 27X
LFO-2-9-λ 9.0 mm 8.1 mm 0.50 2.0 mm 18X
LFO-3-12-λ 12.0 mm 10.9 mm 0.30 2.5 mm 13X
LFO-3-15-λ 15.0 mm 13.4 mm 0.53 2.5 mm 11X

光纤准直镜 红外镜头

Catalog
Number
Clear Aperture Numerical Aperture Working Distance Focal Length
LFO-5-6 5 mm 0.25 5.3 mm 6 mm
LFO-5-12 5 mm 0.13 11.5 mm 12 mm
LFO-5-18 5 mm 0.08 17.5 mm 18 mm

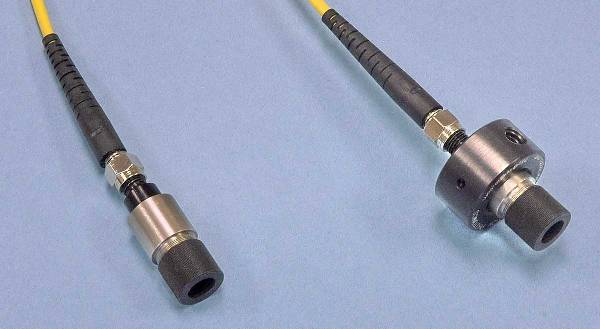

红外光纤准直镜

2-12um

红外光纤准直镜

Catalog Number Focal Length Clear Aperture Numerical Aperture
FCR-6-λ 6 mm 0.5 mm 0.25
FCR-12-λ 12 mm 1.0 mm 0.13
FCR-18-λ 18 mm 1.6 mm 0.08
