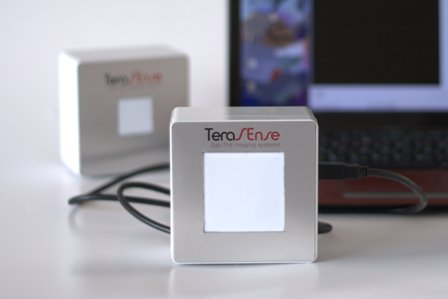

TeraSense太赫兹相机

Description / Specifications |
Standard MODELS
(Frequency range covered*: 50 GHz – 700 GHz) |
TERA-256 |
Linear TERA-1024 |
TERA-1024 |
TERA-4096 |
Number of pixels: |
256 (16 x 16) |
1024 (256 x 4) |
1024 (32 x 32) |
4096 (64 x 64) |
Pixel size (pitch): |
1.5 x 1.5 mm2 |
1.5 x 1.5 mm2 |
1.5 x 1.5 mm2 |
1.5 x 1.5 mm2 |
Responsivity: |
50 kV/W |
50 kV/W |
50 kV/W |
50 kV/W |
Noise Equivalent Power: |
1 nW/√Hz |
1 nW/√Hz |
1 nW/√Hz |
1 nW/√Hz |
Dimensions of device: |
10 x 10 x 5.5 cm |
44 x 4.3 x 8.9 cm |
10 x 10 x 5.5 cm |
20 x 20 x 10 cm |
Power: |
5V USB powered |
5V USB powered |
5V USB powered |
5V USB powered |
Warranty: |
1.5 years |
1.5 years |
1.5 years |
1.5 years |
Software: |
Terasense Viewer Software |

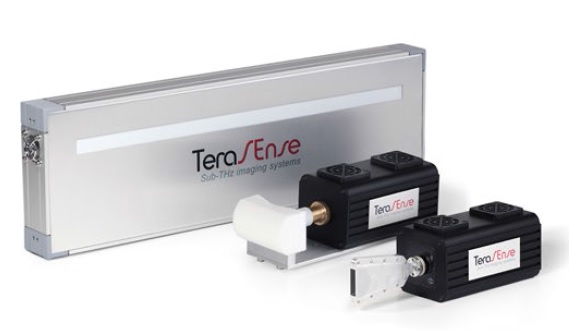

线阵列太赫兹相机（高速太赫兹相机）
高速线阵列太赫兹相机高可以达到5000fps
| Model / part number: |
TeraFAST-256-HS |
| Number of pixels (scalable): |
256 (256 x 1) |
Image acquisition rate: |
5000 fps (5 KHz) |
| Pixel size (pitch): |
1.5 x 3 mm |
Responsivity: |
8000 V/W |
| Sensor array imaging area: |
384 x 3 mm |
Min detectable power/pixel: |
100 nW (at 5000 fps)
45 nW (at 1000 fps)
14 nW (at 100 fps) |
| Size of device: |
450 x 160 x 44 mm |
| Sync out: |
TTL (+5 V) |
| Interface: |
Mini-USB |
Power supply: |
24 V/ 20 W |
| Warranty: |
1,5 years |
Software included: |
TeraFast Viewer |
线阵列太赫兹发生器
用于线阵列太赫兹相机
Model name / part number |
Type-I
(IMPATT-100-LS-cH/ptfe) |
Type-II
(IMPATT-100-LS-fH/mirr) |
Type-III
(MPATTx4-100/330-LS-fH/mirr) |
Frequency: ~ 100 GHz
Output power: ~ 80 mW
Power per pixel: 20 uW
Dynamic range: 24 dB
THz optics:PTFE lens
Conical horn antenna Linewidth: 1 MHz |
Frequency: ~ 100 GHz
Output power: > 80 mW
Power per pixel: 140 uW
Dynamic range: 30 dB
THz optics: Metallic reflection optics
High gain flat horn
Technology: super-hero IMPATT
Linewidth: 1 MHz
Incident signal improvement factor: x4
|
Frequency: ~ 100 GHz
Output power: ~ 330 mW
Power per pixel: 570 uW
Dynamic range: 36 dB
THz optics: Metallic reflection optics
High gain flat horn
Technology:super-hero IMPATT
Linewidth: 1 MHz
Incident signal improvement factor: x16 |
 |
 |
 |

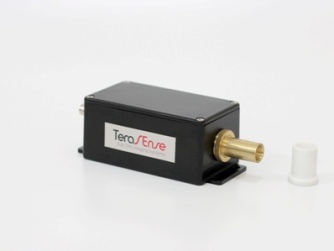

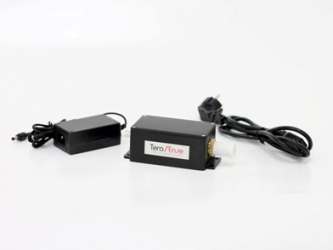

IMPATT太赫兹发生器

100GHz太赫兹源
型号: IMPATT-100-H/F
带隔离器
Frequency: ~ 100 GHz
● Protective isolator
● TTL Modulation (1us rise/fall time)
● High power (≥ 80 mW output rfpower)
● Rigidly fixed conical horn antenna - or - ● WR-10 or WR-8 flange
150GHz太赫兹源
型号: IMPATT-140-H/F
带隔离器
Frequency: ~ 140 GHz
● Protective isolator
● TTL Modulation (1us rise/fall time)
● High power (~ 30 mW output rfpower)
● Rigidly fixed conical horn antenna - or - ● WR-6 flange

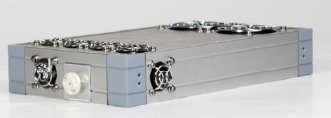

大功率太赫兹发生器
330mW太赫兹发生器
型号: MPATTx4-100/330-H/F
Technology: super-hero IMPATT
Frequency: ~ 100 GHz
Linewidth: 1 MHz
● Protective isolator
● TTL Modulation (1us rise/fall time)
● High power (~ 330 mW output rfpower)
● WR-8 flange or WR-10 - or - ● Conical horn antenna (at customer’s choice)

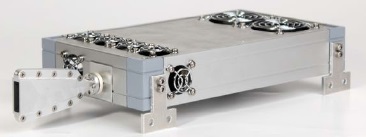

高功率太赫兹发生器
覆盖80-360GHz，提供更高的功率输出
Generator type |
Standard frequency |
Custom frequency |
Frequency tunability |
Line width |
Peak output power |
TERASOURCE-3 |
100 GHz |
80 – 120 GHz |
10 GHz |
< 1 MHz |
0.5 - 1 W |
TERASOURCE-2 |
140 GHz |
120 – 160 GHz |
15 GHz |
< 1.5 MHz |
0.5 – 0.75 W |
TERASOURCE-1.5 |
200 GHz |
160 – 240 GHz |
20 GHz |
< 2 MHz |
0.2 – 0.5 W |
TERASOURCE-1 |
300 GHz |
240 – 360 GHz |
30 GHz |
< 3 MHz |
0.05 – 0.1 W |

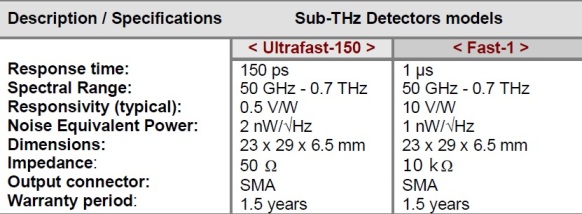

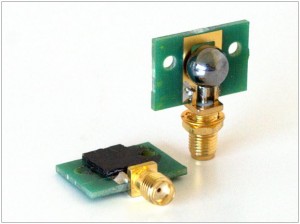

超快太赫兹探测器
Ultrafast sub-THz Detector
Response time: 150 ps
Spectral Range*: 50 GHz- 0.7 THz
Responsivity: 1 V/W
Noise Equivalent Power: 500 pW/√Hz
Output connector: SMA
Size: 23 х 29 х 6.5 (mm)
Warranty: 1.5 years
|
